주요 특징

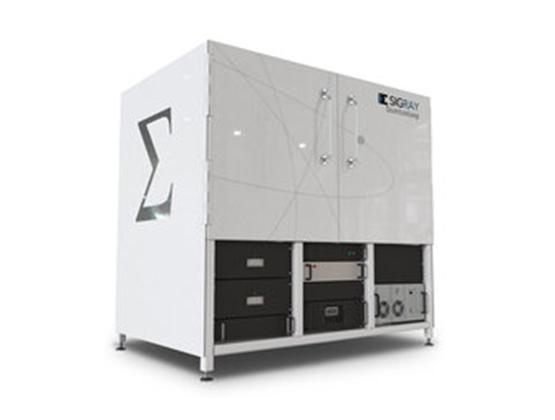

Sigray QuantumLeap™은 Synchrotron와 같은 성능을 갖춘 최초의 실험실 X-ray absorption spectroscopy(XAS)이며 Oxidation states, Bond lengths, Interatomic distances, Electron symmetry 등에 대한 중요한 정보를 제공합니다.

Application

• 촉매 : 산화물, 질소화물 및 탄소화물의 화학적 상태(Cluster 크기 분석
• 배터리/연료전지/태양전지 : 충전 및 방전주기의 함수로서 전이 금속(e.g : Lithium ion batteries)의 산화 상태 분석
• 나노입자 : 구조, 크기, 구성의 특성화 분석

Specifications

Parameter	Specification

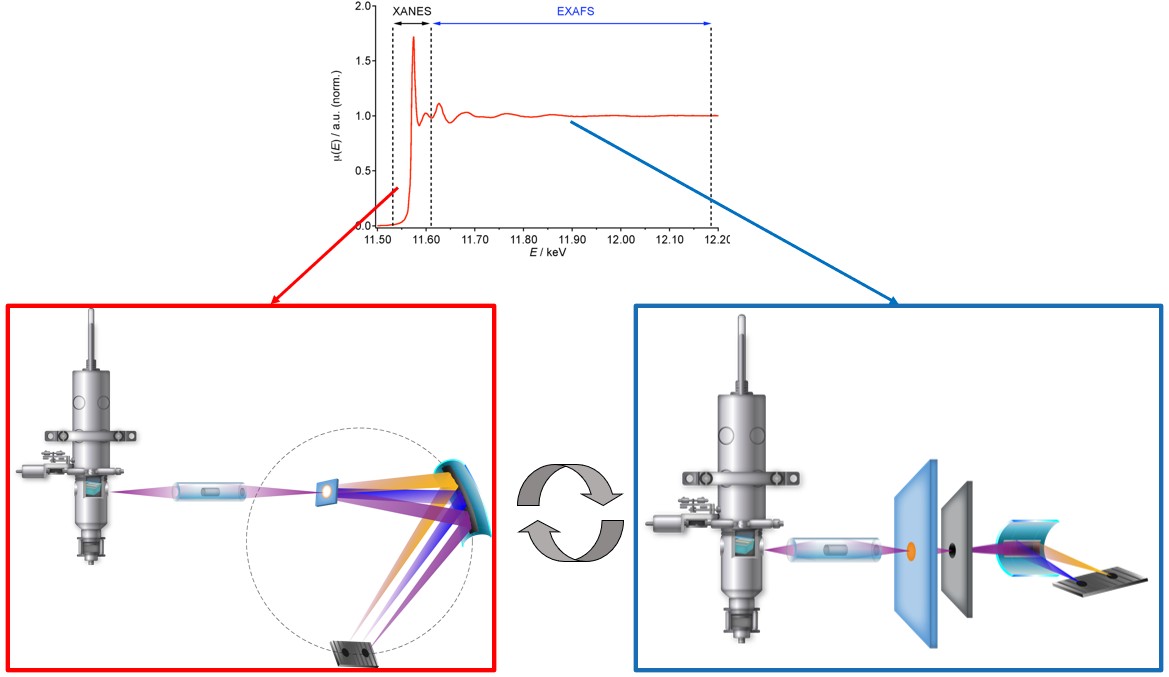

Dual Modes	XANES at sub-eV | EXAFS at high throughput
Energy Coverage	Model A410: 4-12* keV | Model A210: 2.1-12* keV *Possible to extend to higher energy x-rays with reduced throughput & energy resolution
Energy Resolution	XANES: Down to 0.7 eV EXAFS: <10 eV
Spatial Resolution	Bulk mode | Micro-XAS mode at 100 μm
Crystal Analyzers	HAPG/HOPG, Ge (111), Ge (220), Ge (400). Others on request
Source	Sigray High Brightness Microfocus Source
Target Materials	A410: Dual energy of W and Rh (or Mo) | A210: W, Rh, and Cr. Others on Request
Power | Voltage | Current	300 W | 20-50 kV
X-ray Detector	Spatially resolving detector
X-ray Fluorescence Detector	Si SDD Detector (10 mm2)
Energy Resolution	<129 eV at Mn-Ka
