주요 특징

• CleanTop 광학 테이블, 브레드보드를 위한 최적의 지지대
• Tie-bar를 적용한 기둥 4개짜리 제품은 대부분의 거의 모든 광학 테이블을 받칠 수 있으며, 테이블의 길이가 3 m 이상이면 기둥 6개를 추천

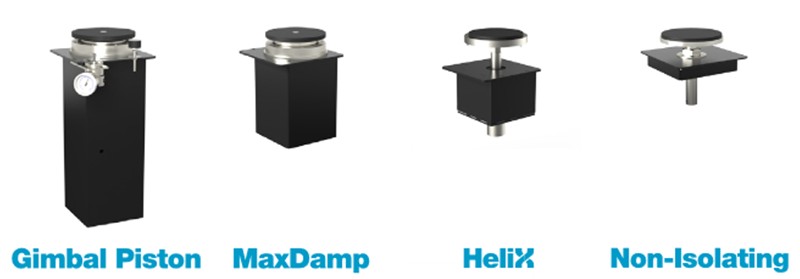

• 4 가지 제진 옵션: Gimbal Piston, MaxDamp, HeliX, Non-Isolating

Applications

Specifications

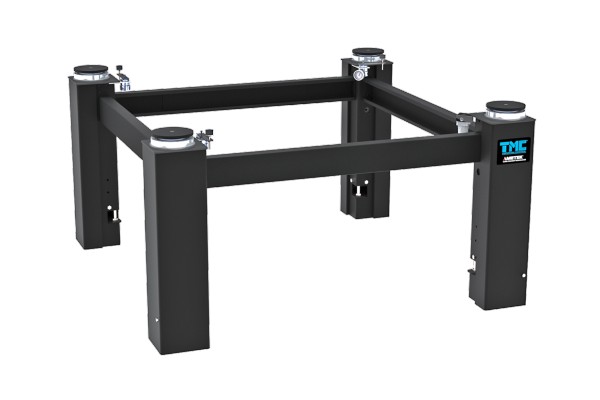

Standard configurations	4-post system with tie-bars 6-post system with tie-bars Free-standing posts
Vibration isolation options	Rigid non-isolating supports with manual leveling HeliX airless isolators with manual leveling Gimbal Piston pneumatic isolators with automatic mechanical leveling MaxDamp pneumatic isolators with automatic mechanical leveling
Optional addons	Leveling baseplates Precision valves (Gimbal Piston and MaxDamp only) Casters Height control valve kit (free standing Gimbal Piston or MaxDamp posts only; comes standard with 4- and 6-post systems)
Available standard lengths	34 - 82 in. (86 - 208 cm) for 4-post 78 - 138 in. (198 - 350 cm) for 6-post
Available standard widths	27 - 52 in. (69 - 132 cm) for 4-post 42 - 52 in. (107 - 132 cm) for 6-post
Available standard heights	12 - 32 in. (30 - 80 cm)
Weight capacities	350, 1000, or 2500 lbs. (150, 450 or 1130 kg) per post for Gimbal Piston, MaxDamp, and Rigid Support 375 lbs. (170 kg) per post for HeliX
